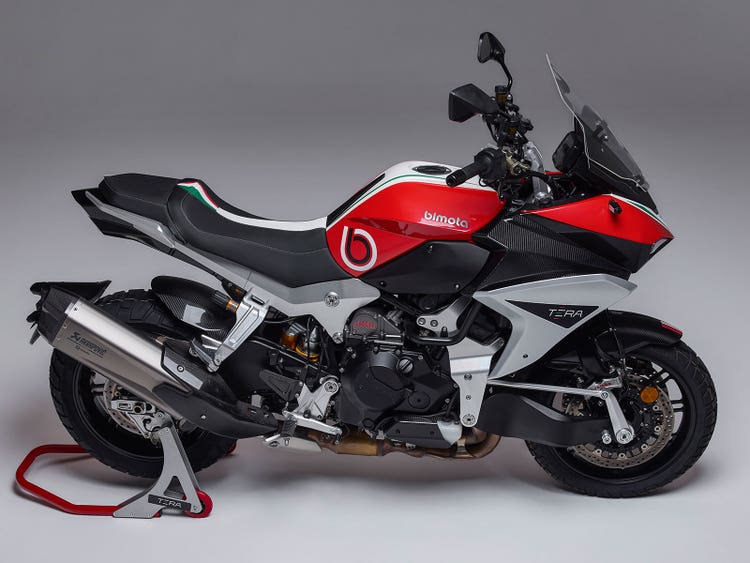

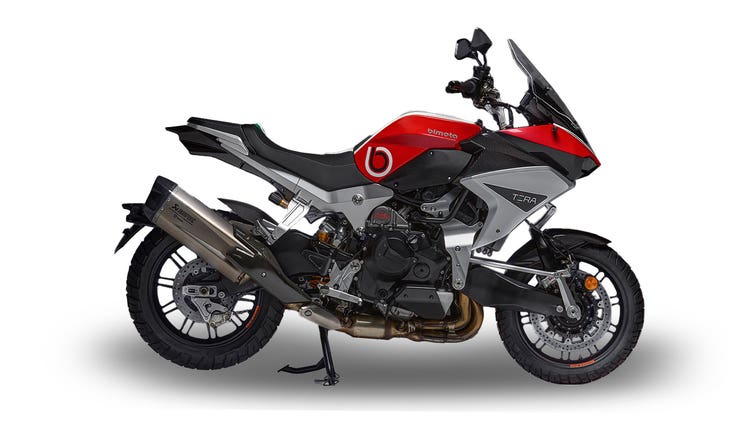

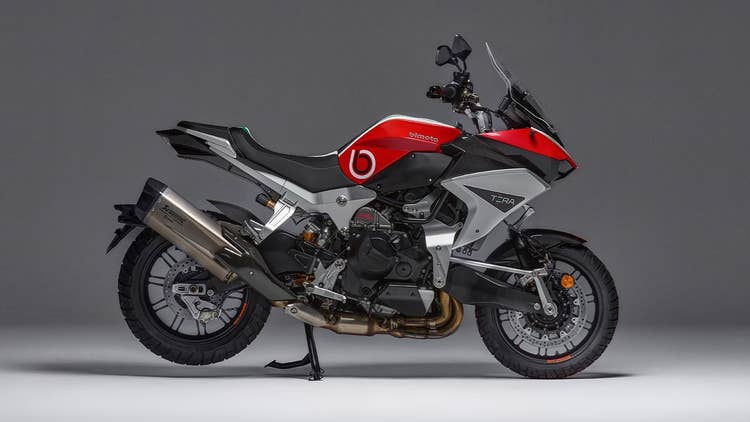

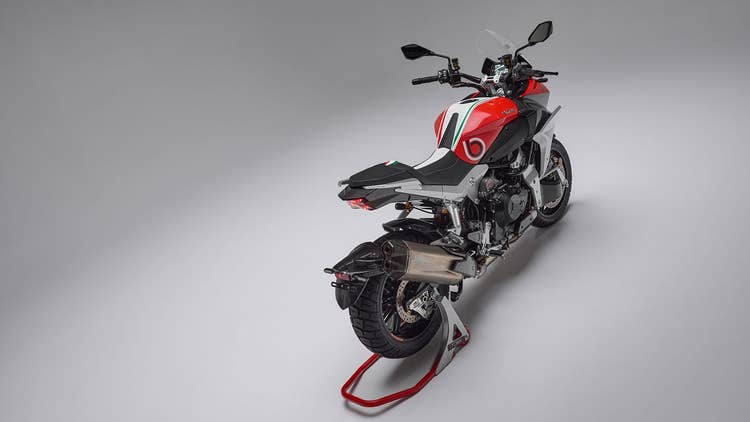

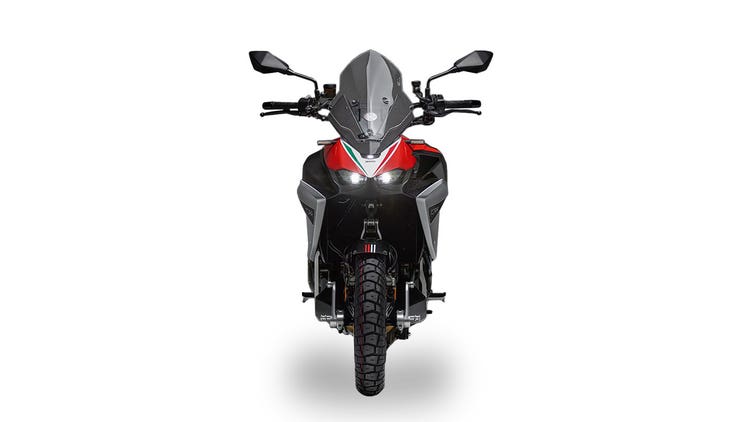

Tesi H2 TERA

Crossover Revolution

Across mountains and beyond borders, bimota’s Tesi H2 TERA leads the way, where innovation meets raw power. Equipped with the groundbreaking TESI system and a Supercharged Engine, it effortlessly switches from high-speed runs on asphalt to exploring trails in the dirt, pushing the boundaries of performance where others hesitate. This is a machine crafted not just for roads, but for the kind of adventures that transcend the everyday. Embrace adventure, embody elegance, ignite revolution. The Tesi H2 TERA is not just a motorcycle—it is the revolution that knows no boundaries, only the thrill of the ride.

Unprecedented PerformanceThanks to the innovative TESI system and a Supercharged Engine, the TERA sets a new standard in the motorcycle industry.

Frame and styleThe frame is the evolution of bimota's TESI H2 model. The bike is entirely made using aluminum alloys and carbon fiber.

The Meaning of “TERA”The meaning of TERA is derived from the Italian Tesi con Regolazione dell’Altezza (Tesi with height adjustment). Not uncoincidentally, TERA is very similar to terra, the Italian word for “earth,” “soil,” or “ground,”—a reflection of this crossover machine’s potential to explore the boundless terrain as part of its broad performance envelope.

Technical Information

Max. Power

147.1 kW / 200 hp

@ 11,000 r/min

Max. Torque

137.0 N･m / 101 lbf-ft

@ 8,500 r/min

Curb Mass

233 kg* / 513.67 lb

*Curb mass includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied)

Show All Specifications

Tesi H2 TERA

Technical Information

Frame type

Aluminium alloy plates (machined from billet), with rear swingarm mounting plate

Engine type / Valve system

Liquid-cooled, 4-stroke, inline 4-cylinder, supercharged; DOHC, 16 valves

Displacement

998 cm³

Bore x Stroke

76.0 mm × 55.0 mm

Compression ratio

11.2:1

Max. power

147.1 Kw (200 PS) / 11,000 rpm

Max. torque

137,0 N･m (11.3 kgf･m) / 8,500 rpm

Fuel system

Fuel injection (ø40mm x 4 with dual injection)

Fuel tank capacity

19 lt.

Lubrication system

Forced lubrication (wet sump with oil cooler)

Engine oil capacity

4.7 lt.

Transmission

6 speed, return, dog-ring

Gear ratios

1st 3.077 (40/13)2nd 2.471 (42/17)3rd 2.045 (45/22)4th 1.727 (38/22)5th 1.524 (32/21) 6th 1.348 (31/23)

Primary reduction Ratio

1.480 (74/50)

Final reduction Ratio

2.556 (46/18)

Clutch

Wet multi-disc, manual

Final drive

Chain

Overall length

2,125 mm

Overall width

1,000 mm

Overall height (High/Low position)

1,438 mm / 1,392 mm

Wheelbase

1,445 mm

Ground clearance

135 mm

Seat height

830 mm

Rake / Trail

24.5° / 125 mm

Front suspension

Öhlins TTX 36 nitrogen gas charged shock with piggyback reservoir, compression and rebound damping and adjustability and hand-turn spring preload adjustability, and top-out spring

Rear suspension

Öhlins TTX 36 nitrogen gas charged shock with piggyback reservoir, compression and rebound damping and adjustability and hand-turn spring preload adjustability, and top-out spring

Front wheel travel

114 mm

Rear wheel travel

145 mm

Front tire

120/70ZR17M/C (58W)

Rear tire

190/55ZR17M/C (75W)

Front wheel

Forged, J17M/C × MT3.50

Rear wheel

Forged, J17M/C × MT5.50

Front brake

Type: Dual semi-floating ø330 mm discs

Caliper: Dual radial-mount, Brembo Stylema monobloc, opposed 4-piston

Rear brake

Type: Single ø260 mm disc

Caliper: Opposed 2-piston

Curb mass

214 kg

Advanced rider support technology

Kawasaki Cornering Management Function (KCMF), Kawasaki TRaction Control (KTRC) (3-MODE), Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Quick Shifter (KQS) (upshift & downshift), Electronic Cruise Control, Assist & Slipper Clutch Full-Colour LCD TFT screen.

Engineering Excellence Meets Striking Design

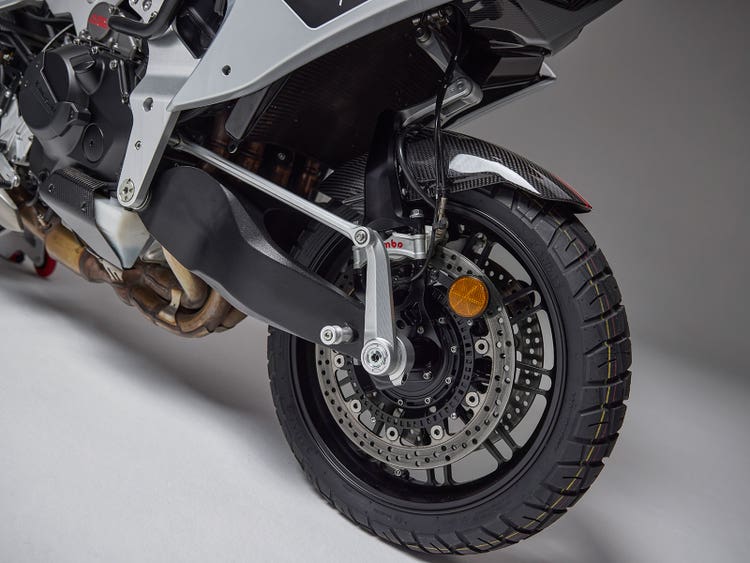

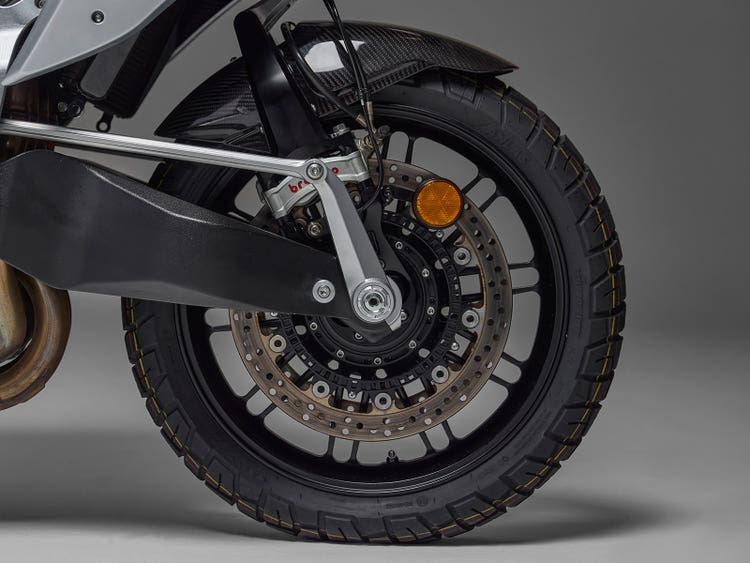

Tesi Steering System: TERA

One of the key elements of the Crossover Revolution is the latest version of bimota’s iconic Tesi centre-hub steering system, which succeeds in completely separating the front’s steering and suspension functions. The innovative solution offers a significantly wider steering angle (35º vs 27º on the Tesi H2), and a much more direct connection between the handlebar and the front wheel, increasing sensitivity from the road to the rider for a confidence-inspiring front-end feel.

Well-Composed Chassis

Like with all bimota motorcycles, in order to help the rider to feel at one with their machine, simplifying the connection between the rider and the bike was of prime importance. This is complemented by a layout that achieves a 52.5/47.5 front-rear weight distribution—deemed optimal for a performance crossover powered by a supercharged In-Line Four engine. Add to this the TERA system that maintains the front-end geometry with minimal dive and lift—even when the ride height is adjusted—and a rear swingarm pivot carefully positioned to disperse pitching forces under braking also creating an anti-dive effect, and the result is a highly composed character and consistently predictable handling.

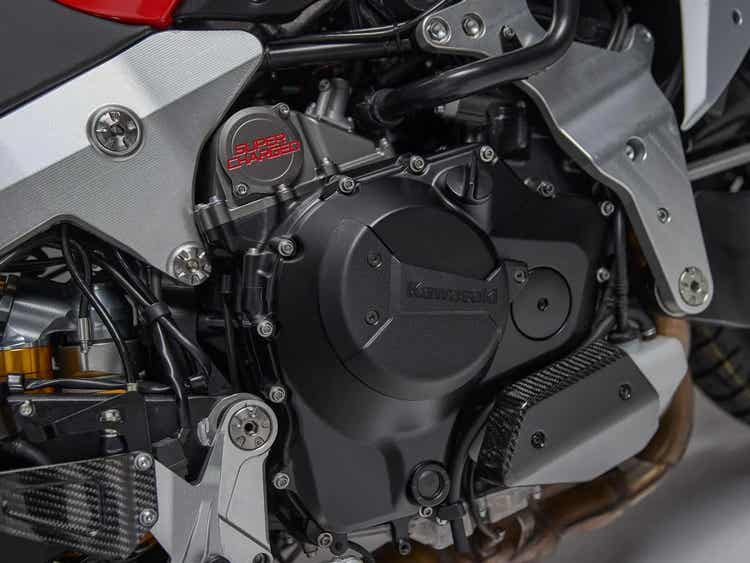

Supercharged Performance

To give the Tesi H2 TERA truly exceptional performance, bimota selected the supercharged engine from Kawasaki’s Z H2, an engine tuned for maximum street-riding excitement. Combined with the commanding view offered by the TERA’s confidence-inspiring upright riding position, every twist of the throttle offers grin-inducing acceleration.

Advanced Rider Support Technology

Powered by Kawasaki’s proprietary dynamic modelling program, enhanced with input from a Bosch IMU, and recalibrated to suit the unique handling characteristics of the Tesi H2 TERA, highly sophisticated electronic management systems facilitate rider control and help riders enjoy the broad potential of this extreme crossover model as they explore its performance on a variety of surfaces, opening a new world of pure riding bliss.

ANLAS: Bespoke Rubber

To realise Tesi H2 TERA’s wide performance envelope—everything from light off-road riding to high-speed highway cruising—required a tyre that did not yet exist. Working with ANLAS, bimota was able to commission something unique: the world’s only dual-purpose tyres homologated to 270 km/h. The bimota logos marking the tyres stand as a visual reminder that these compounds were created specifically for the Tesi H2 TERA.

High-Grade Components

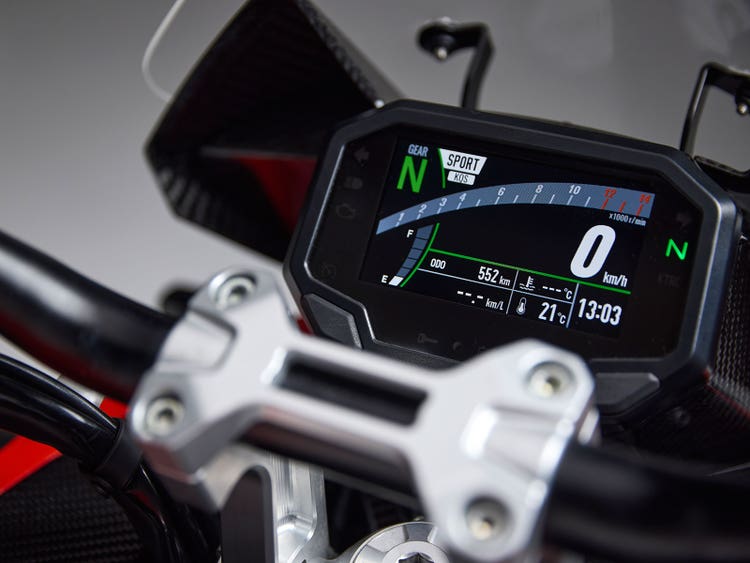

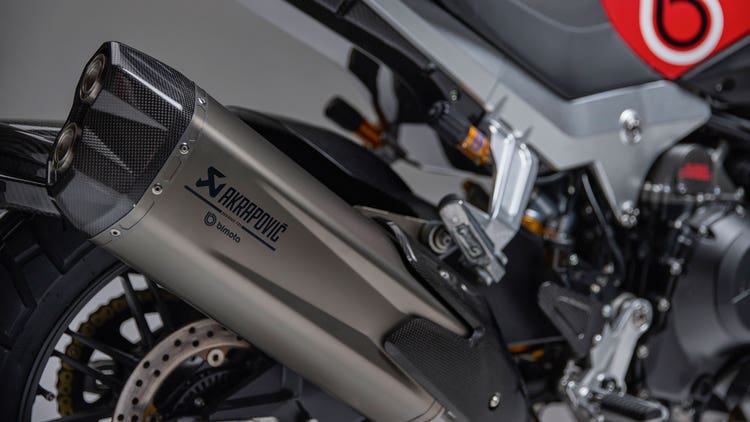

In addition to the Akrapovic exhaust, bimota selected only the finest high-grade components for the Tesi H2 TERA. Front and rear suspension units are by the highly respected suspension gurus at Öhlins, the front brakes are slowed by top-of-the-line Brembo monobloc calipers, and the ANLAS tyres are mounted on bimota-original forged wheels from OZ Racing, a MotoGP and F1 supplier with a long racing history. From the cockpit, riders are treated to full-colour TFT instrumentation, adding to the premium riding experience.

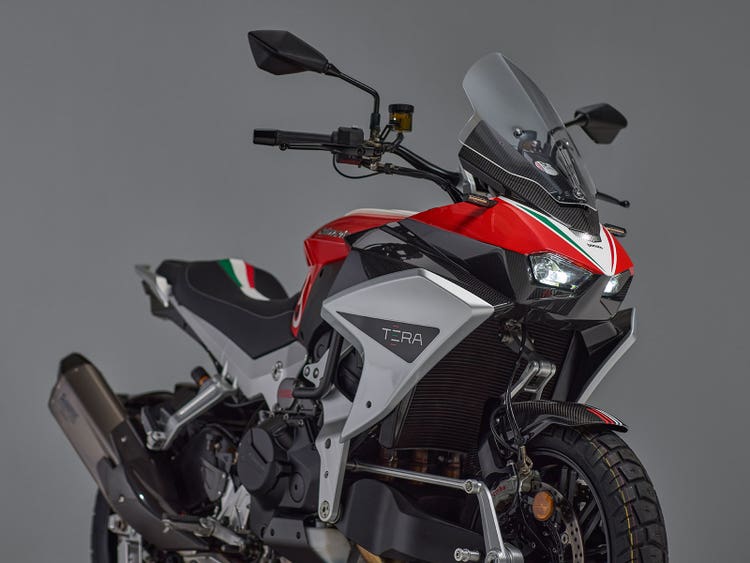

Dynamic, Commanding Styling

The Tesi H2 TERA’s unique design—unlike anything else on the market—commands attention, giving it not only instant recognition as a bimota, but also the kind of curb appeal found only with truly extraordinary machines. Its Italian style, innovative chassis, and lovingly sculpted bodywork are all the more alluring for the fact that each piece was designed with a purpose: form follows function on this model, with function distinctively the priority. Down to the smallest detail, the Tesi H2 TERA exudes quality and performance, enticing all who glance upon it to experience for themselves the transformative ride of a crossover created to redefine the genre.

Fastidiously Selected Materials

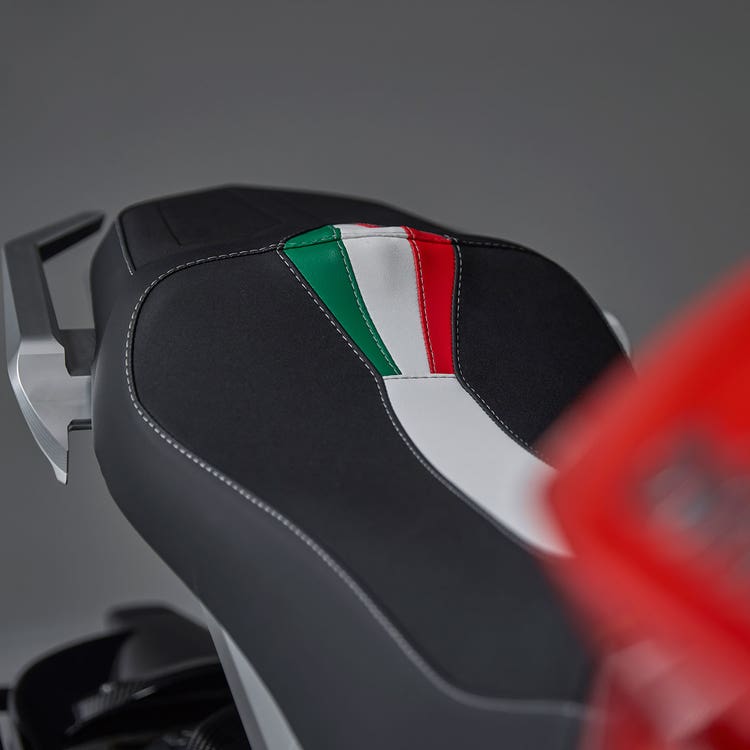

Whether high-precision cast pieces like the front and rear swingarms, or parts machined from billet like the highly rigid steering links and pull-rod, high-quality aluminium is used exclusively. All the bodywork is made from dry carbon with a high carbon content. Each part is designed by hand, then produced in the same autoclave facilities used for MotoGP and Italian supercars, ensuring the highest quality. Carefully stitched seat covers add to the elegant finish and offer a supple feel—both a visual and tactile reminder of bimota’s steadfast dedication to an extraordinary experience.
